Polyurethane (P.U.) Sheets, Rods & Bushes

Description :

Polyurethanes (P.U.) are a large class of polymers that can be tailored to a wide range of applications, making a significant contribution to the construction, automotive and electrical sectors. Polyurethane is more commonly known for liquid coatings and paints, but applications can also vary from soft, flexible foams to rigid insulation. This broad range of applications is possible as there are both Thermoplastic and Thermosetting polyurethanes.Polyurethane (PU) is an extremely versatile elastomer used in countless applications worldwide.

Wide Range of Hardness The classification of hardness for polyurethane relies on the prepolymer's molecular structure and can be manufactured from 20 SHORE A to 85 SHORE D.

High Load Bearing Capacity Polyurethane has a high load capacity in both tension and compression. Polyurethane may undergo a change in shape under a heavy load, but will return to its original shape once the load is removed with little compression set in the material when designed properly for a given application.

Product Details :

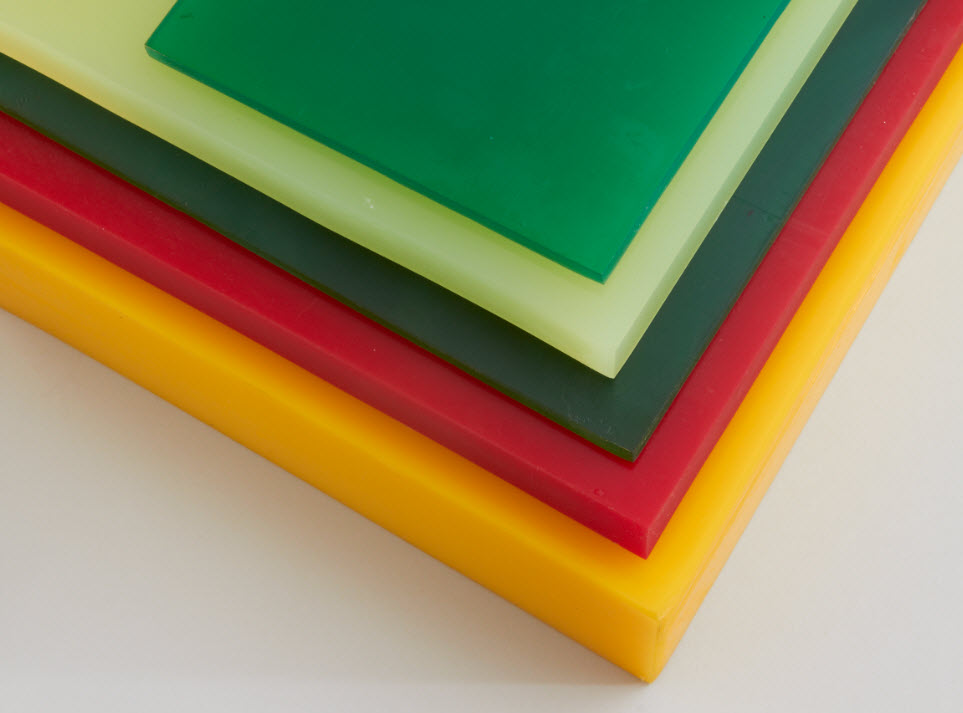

Standard Size Sheets :

3 mm to 100 mm thickness in various sizes

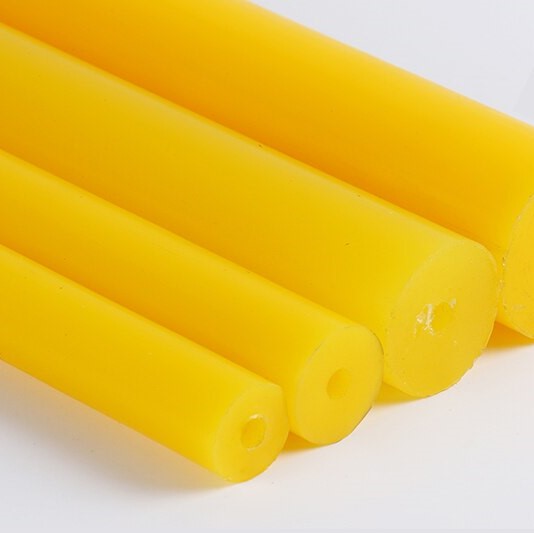

Standard Size Rods :

Diameter 12 mm to 150 mm in 300 mm length

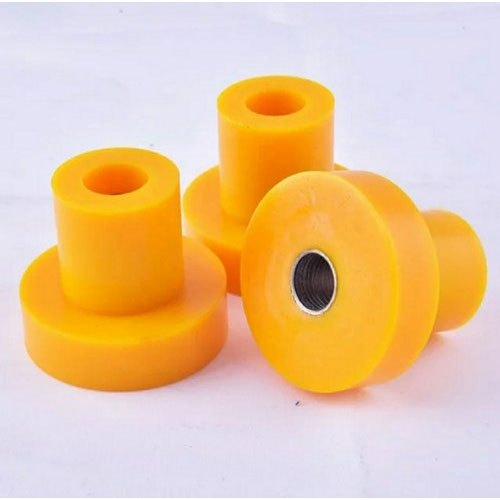

Standard Size Bush :

Variety of sizes from OD 15 x ID 8 X 300 mm upto OD 100 X ID 21 X 300 mm

Colours :

White, Black, Blue (Against order)

Performance Characterestics
  • Strong and Stiff
  • Chemical resistant, hydrolysis resistant, autoclavable
  • Easy to machine and fabricate
  • Good mechanical properties at elevated temperatures
  • UL 94 V-0 flammability rating (0.059" thickness)
  • Very low smoke and toxic gas emissions when exposed to flame
PEEK IS WIDELY USED FOR
  • Semiconductor machinery components
  • Aerospace parts
  • Bushings, bearings, seals, and back-up rings
  • Pump and valve components
  • Vacuum wand handles
  • Down hole electrical connectors
  • Medical instrument parts
  • Food processing machinery components
